Introducing the new all-in-one appliance for AllStarLink and similar radio applications.
The unit contains all the required components to operate as an ASL node, fabricated into a sturdy aluminum enclosure with front-panel controls, no PC required.

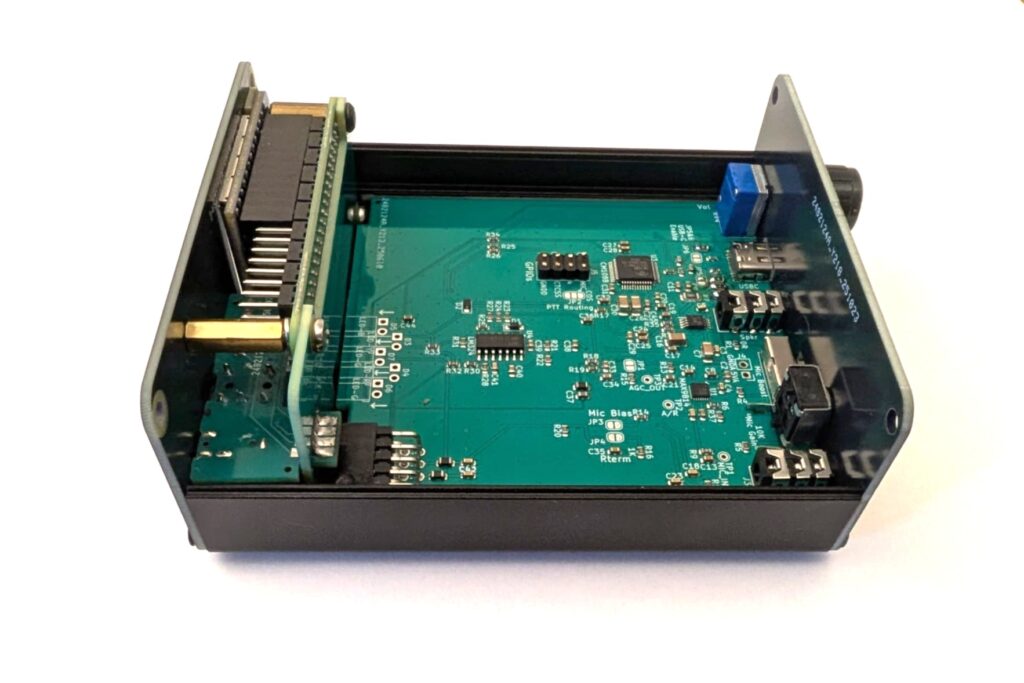

What’s in the (Radio-less-node) RLN-Z2?
- A powerful Raspberry Pi Z2 W processor with WiFi
- 32GB SD card with ASL3 and the G1LRO custom setup firmware pre-installed

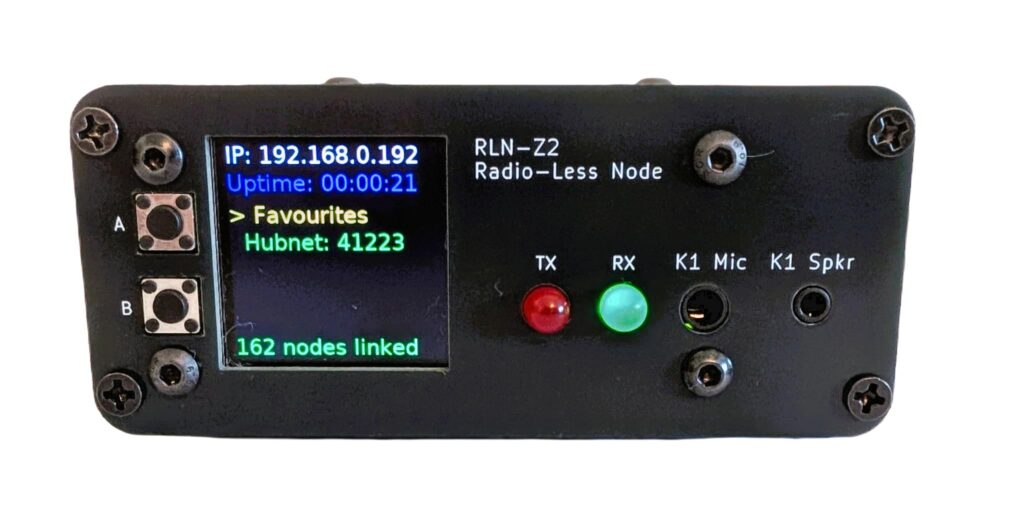

- 1.25 inch color LCD screen with button navigation to select favorite node connections in ASL3
- Audio interface based on the industry-standard CM108 sound processor
- Powerful 2.5W amplifier with internal speaker – audio design by Allscan.info

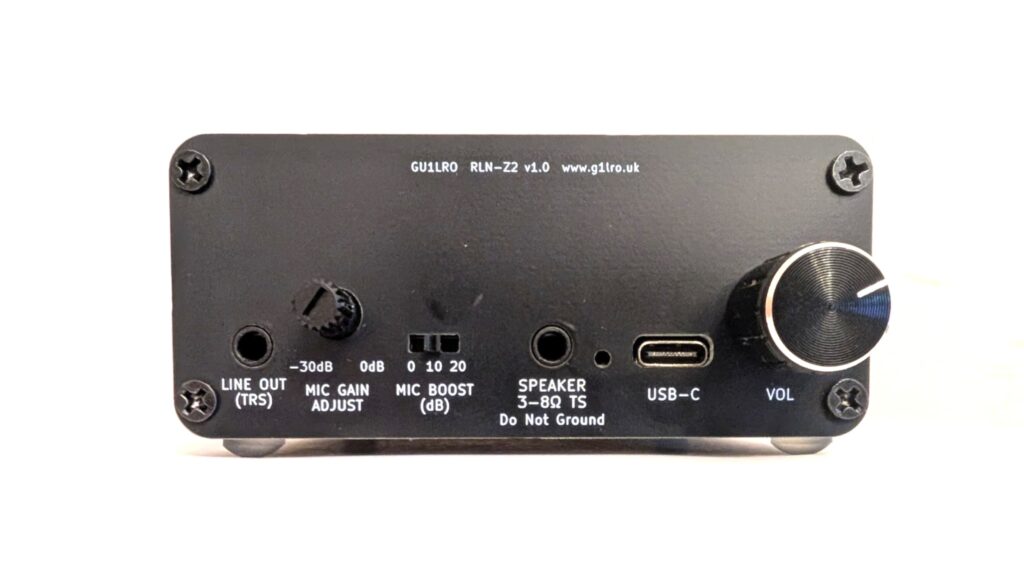

- Controls for microphone gain to support a wide range of microphone types
- Line-out for connection to auxiliary audio equipment
- Manual Bourns volume control and External speaker out

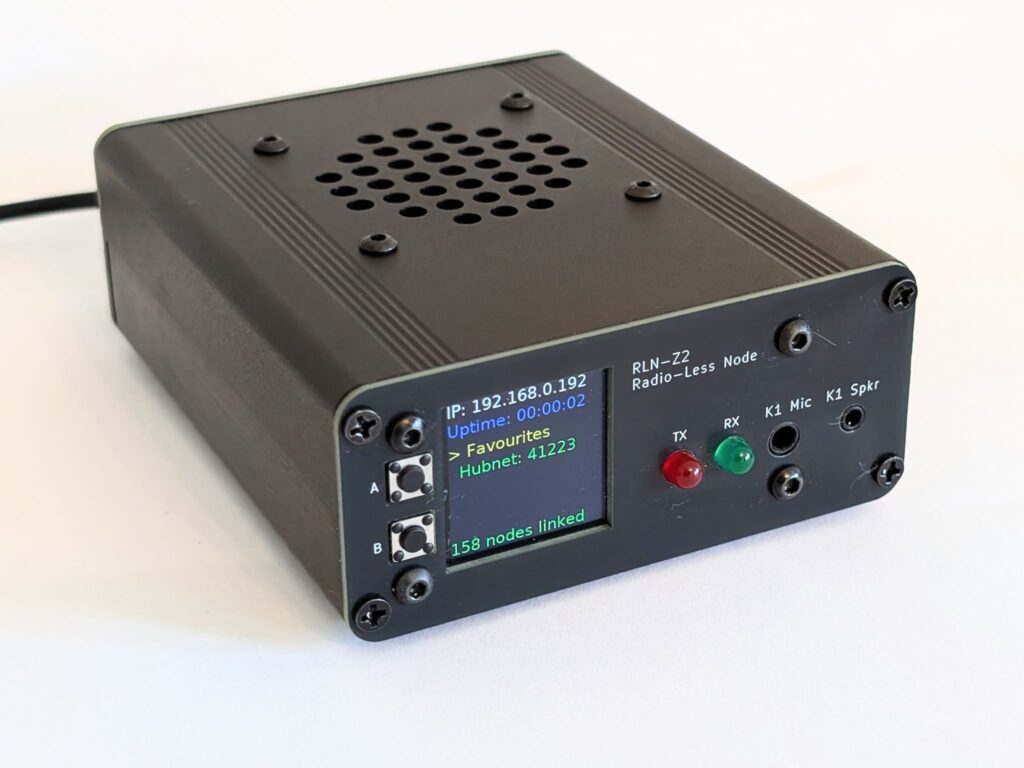

- Sturdy 88x38x100(mm) extruded aluminum case with rubber feet

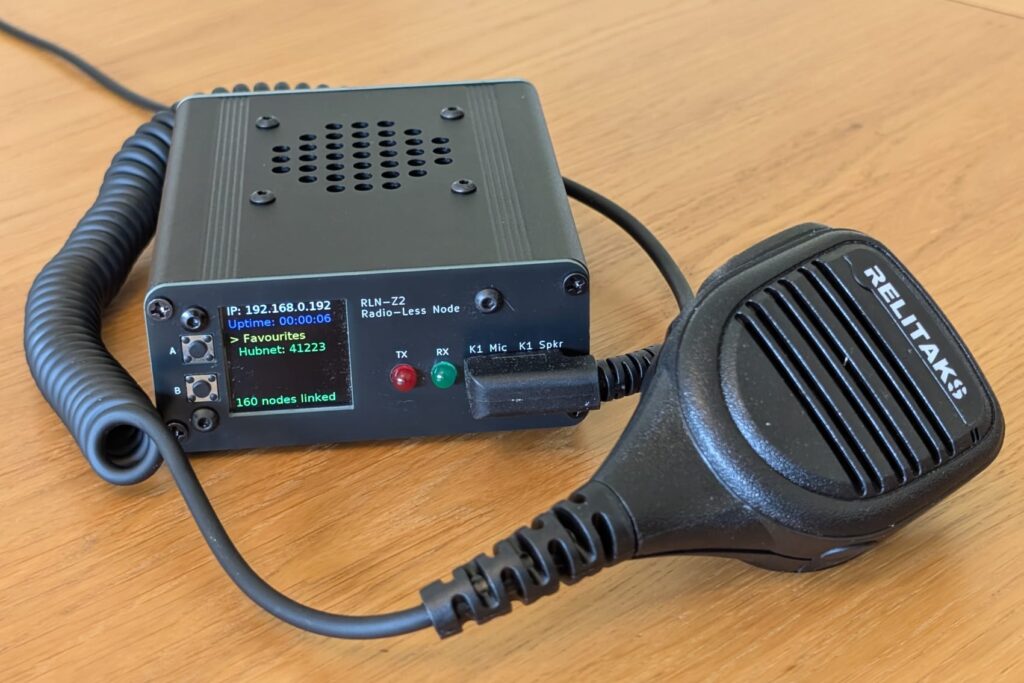

- Front panel ‘K1’ microphone socket with supplied mic.
- Powered from 5v USB-C (cable provided)
New: watch Andreas M0FXBs series of information videos for the RLNZ2 here
The unit can be used stand-alone without a computer, just insert a USB-C connector for power (or from a battery power bank). The built-in screen shows status information and allows the selection of one of the pre-set favorite node number to instantly connect.
The unit is delivered with set-up software running to allow you to connect from a phone or laptop to configure the unit for your WIFI and node address, no need to flash the SD card or use any terminal applications to access the device – it’s plug and play.
What do you need to use the RLN-Z2?
- 5v USB supply – e.g. wall adaptor or USB power bank capable of providing over 1 Amp
- Good strong WIFI in your house or location (phone hotspot will also work)
- A smartphone or laptop to configure the WiFi and your Node number (only needed for setup)
- AllStarLink Node number and password from https://allstarlink.org/
That’s it, the internal speaker and included microphone means there’s no spaghetti to worry about.
Availability & Pricing.
Unit is now available.
Launch price will be £159 for the assembled unit with Microphone and cables (Plus tax and shipping)
