Description
Raspberry Pi Availability problems.
There is a worldwide shortage of Raspberry Pi Zero 2 W used in the RLNZ2. This means that once the current visible stock is exhausted, there will be no new shipments until December 2026 (according to my supplier time-lines). I have stock of all other components so when Raspberry Pi are delivered I can supply more units.
===============================
This is new Version 2 of the RLNZ2 with improved sound circuit and extra USB port to attach external devices like an ethernet dongle or external transceiver.

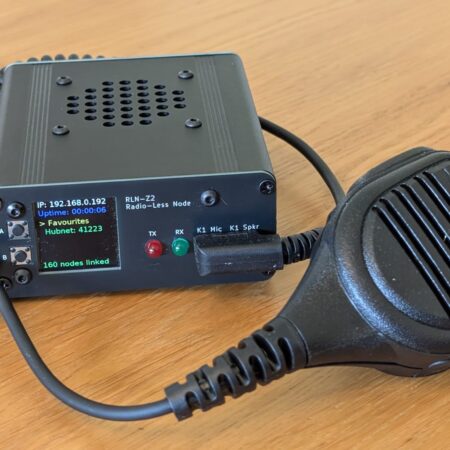

The RLNZ2 is an all-in-one appliance designed to connect to the AllStarLink (ASL) network.
The unit contains all the required components to operate as an ASL node, fabricated into a sturdy aluminum enclosure with front-panel controls. No PC required.
What’s in the (Radio-less-node) RLN-Z2?
- A powerful Raspberry Pi Z2 W quad-core processor with WiFi (you supply this)
- 32GB SD card with ASL3 and the G1LRO custom setup firmware pre-installed
- 1.25 inch color LCD screen with button navigation to select favorite node connections in ASL3
- Audio interface based on the industry-standard CM108 sound processor
- Powerful 2.5W amplifier with internal speaker – audio design by Allscan.info
- Microphone AGC delivering consistent transmitted audio
- Clip indicator (using TX LED) to feedback on TX audio overload.
- Line-out for connection to auxiliary audio equipment
- External speaker output jack
- Sturdy 88x38x100(mm) extruded aluminum case with rubber feet
- Front panel ‘K1’ microphone socket with supplied mic.
- Powered from 5v USB-C (cable provided)
- Extra USB-C port to support devices like external ethernet etc.
Delivery information:
Shipping charges are calculated at checkout depending on your location.
UK Customers: VAT is charged at checkout and pre-paid for the unit, no further charges should be due
EU Customers: You will pay VAT and any import duty when this unit is delivered DAP
US Customers: new 10% import tariff (~$22) i is included in the shipping costs shown for this product
ROW Customers: Items are delivered DAP – buyer is responsible for import formalities and fees
PayPal is accepted using the ‘Direct Bank Transfer’ payment option
